Straight Running ChainSingle Hinge

We are a Global supplier of SS slat chains and we offer a wide range of SS/CS slat chains at the best cost with World Class Quality.Superior Quality materials are used in the manufacturing process. These are used in various industries such as Beverages industry, Brewery Industry, Shrimp industry, Bottling Industry, etc.,We are also supplying un-standard Tailor-made size chains globally based on the Quantity*

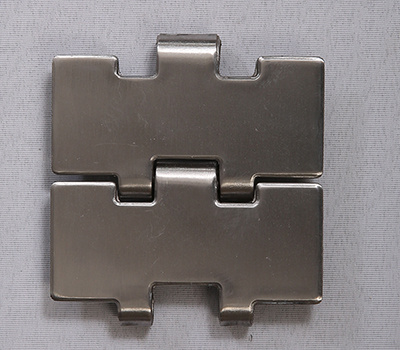

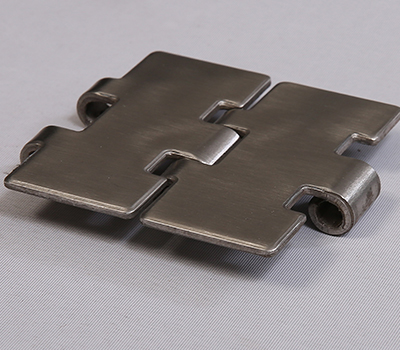

srinivasa single hinge
srinivasa single hinge
Part No Material Thickness Pitch Flatness Back Radius Width  Weight
mm mm mm mm mm inch Kg/Mtr
SS812K250 SS          3          38.1          0.15   150 63.50 2 1/2 2.20
SS812K325 150 82.5 3 1/4 2.50
SS812K400 0.2 150 101.6 4 3.00
SS812K450 150 114.3 4 1/2 3.30
SS812K600 0.3 150 152.4 6 4.20
SS812K750 150 190.5 7 1/2 5.10

Straight Running ChainDouble Hinge

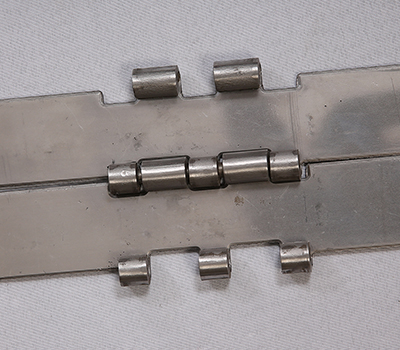

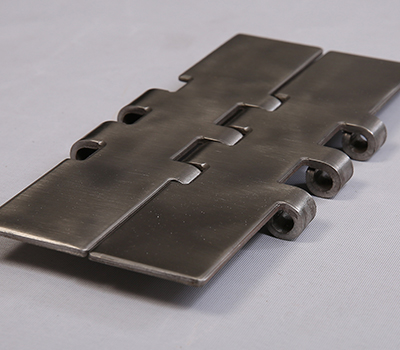

srinivasa double hinge
srinivasa double hinge
Part No Material Thickness Finish Flatness Back Radius Width  Weight
mm µm mm mm mm inch Kg/Mtr
SS802K-750 SS  0.3  150 190.50 7 1/2 5.10
SS802K-1000 150 304.80 12 7.80

Straight Running ChainTab flex Chain

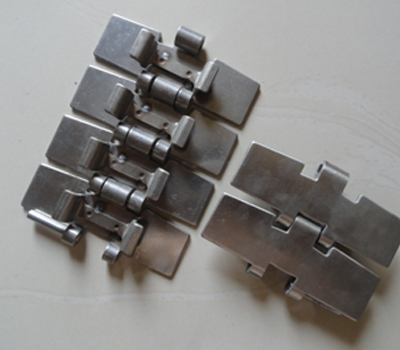

srinivasa side flexing chain
Part No Material Thickness Pitch Min-Radius Flatness Back Radius Width  Weight
mm mm mm mm mm mm inch Kg/Mtr
SS881TK325 SS  38.1  500  0.3  80 82.50 3 1/4 2.50
SS881TK450 80 114.30 4 1/2 3.30
SS881TK750 80 190.50 7 1/2 5.10

Straight Running ChainSide Flex Chain

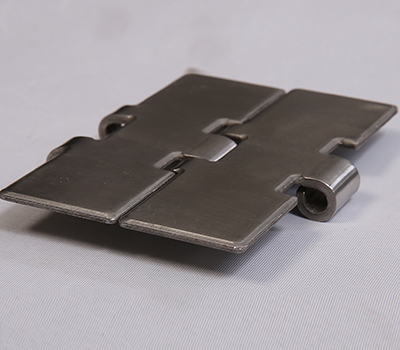

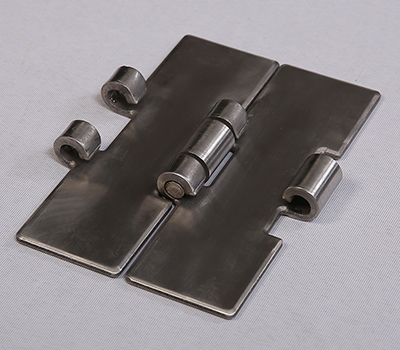

srinivasa magnetic flexing chain
srinivasa magnetic flexing chain
Part No Material Thickness Pitch Min-Radius Flatness Back Radius Width  Weight
mm mm mm mm mm mm inch Kg/Mtr
SS881TK325 SS  38.1  500  0.3  80 82.50 3 1/4 2.50
SS881TK450 80 114.30 4 1/2 3.30
SS881TK750 80 190.50 7 1/2 5.10
