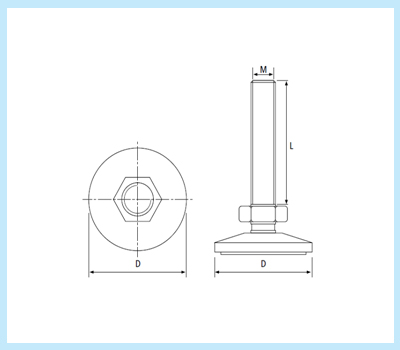

Legpads & Bush
Base Dia (D)
Stud Size (M)
Stud Length (L)
60mm
M12
75mm/100mm
80mm
M16
100mm
100mm
M16
100mm/150mm/200mm

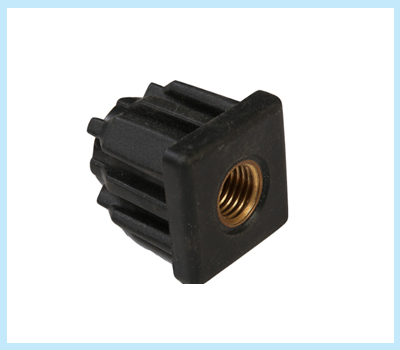

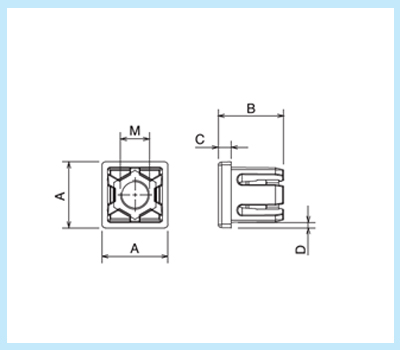

Square Bush
Size : 40X40

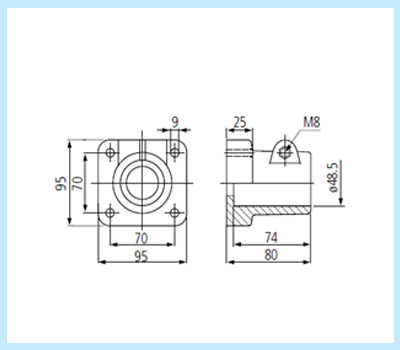

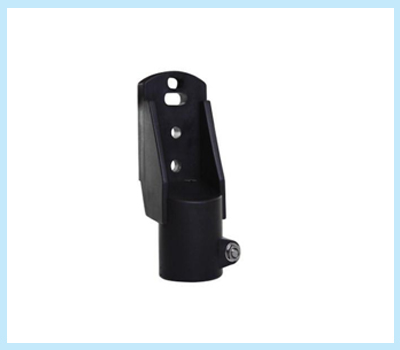

Side Mounting Bracket
Bore Diameter - 48.3mm

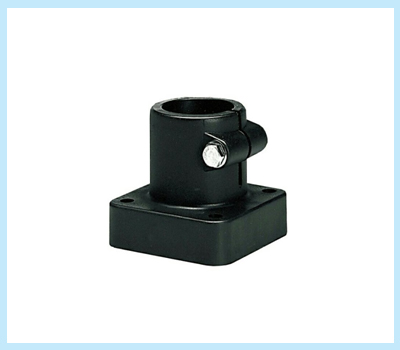

Bottom Support
Bore Diameter - 48.3mm

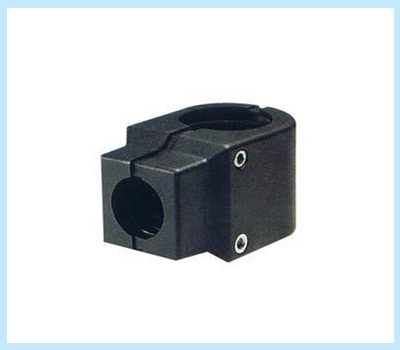

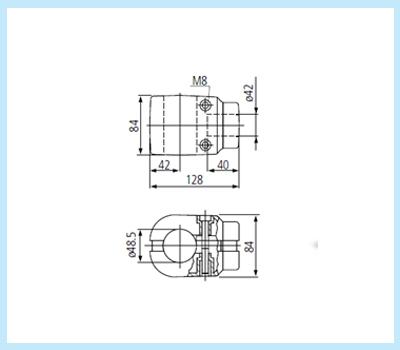

Connecting Joint
Bore Diameter - 48.3mm, Cross Beam Dia – 42mm
